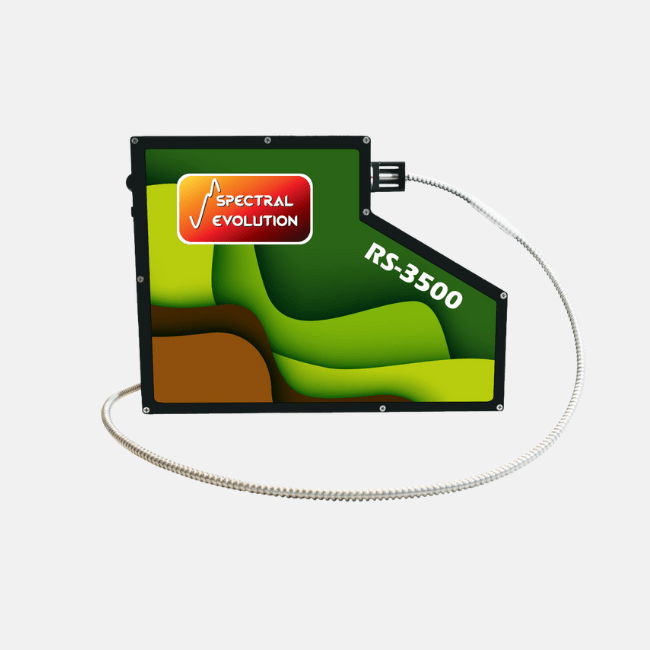

Spectral Evolution RS-3500 Portable Spectroradiometer

The Affordable Spectroradiometer Bundle

The RS-3500 is a remote sensing spectroradiometer bundle that includes a fiber optic field portable remote sensing spectroradiometer plus all the accessories to match your application and budget.

COMPARE SPECTRORADIOMETERS
Need Assistance or Pricing?
The RS-3500 Remote Sensing Bundle provides:
  • Fast, full-spectrum UV-VIS-NIR measurements – 350-2500 nm with just one scan using the SR-3500 spectroradiometer
  • Superior reliability in the field with 100%diode array optics with no moving parts
  • Autoshutter, autoexposure, autodark correction before each new scan with no optimization step
  • Lightweight and compact at 8.94 lbs
  • Lightweight, re-chargeable, external Li-ion battery for field use
  • Removable fiber optic cable – field swappable and easy to replace
  • Optional SMA-905 FOV lenses available for increased flexibility
  • Factory calibrated radiance and/or irradiance using NIST traceable source
  • Bluetooth connectivity (Class I)
  • DARWin SP Data Acquisition software for one-touch scanning, automatically saves data as ASCII files for use with 3rd party software without pre-processing
  • Pull-down menus from DARWin for access to USGS library and vegetation indices
Specifications of RS-3500 Spectroradiometer

Model

RS-3500

Spectral Range

350-2500nm

Spectral Resolution

2.8nm @ 700nm

8nm @ 1500nm

6nm @ 2100nm

Spectral Sampling Bandwidth (nm)

1.3 @ 700nm

3.5 @ 1500nm

2.3 @ 2100nm

Detector(s)

512-element Si Array

Two 256-element TE-cooled

InGaAs Arrays

Calibration

Factory calibrated for radiance/ irradiance using NIST traceable sources (depending upon optics selection)

Noise Equivalence Radiance

W/cm2/nm/sr (1.2m fiber optic)

0.8×10-9 @ 400nm

1.2×10-9 @ 1 1500nm

1.8×10-9 @ 2100

Software Included

DARWinTM SP Data Acquisition

Power

7.5V, 22.5W

Dimensions (in/cm)

8.5 x 12 x 3.5/ 21.59 x 30.48 x 8.89

Weight (lbs/kg)

8.9lbs/4kg

Interface

USB, Bluetooth

Minimum Scan Speed

100ms

Wavelength Reproducibility (nm)

0.1

Wavelength Accuracy (nm)

±0.5 bandwidth

Automatic Exposure

Yes

Shutter for Dark Scans

Yes

Onboard Storage

No

Accessories for Spectral Evolution instruments

Click on the image for more information.

Contact Probes
Contact Probes
RS-3500
Leaf Clip
RS-3500
Benchtop Reflectance Probe
RS-3500
Pistol Grip
RS-3500
R&T and Integrating Spheres
RS-3500
Light Sources
RS-3500
Straight and Right Angle Diffusers
RS-3500
Field Of View (FOV) Lenses
RS-3500
Fibre Optic Cables
Spectral Evolution Tablet
Rugged Tablet
RS-3500
Backpack
Applications
  • Ground truthing – confirming, disputing, or interpreting hyperspectral or multi-spectral data
  • Environmental research
  • Agricultural analysis
  • Ecosystem change
  • Forestry research, including canopy studies
  • Glacial change and climate studies
  • Atmospheric research
  • Vicarious satellite sensor validation
  • Water body studies
  • Plant species identification
  • Urban development
  • Crop health, including photosynthesis efficiency
  • Irrigation assessment
  • Topsoil fertility and erosion risks
  • Soil degradation, mapping, and monitoring
