SphereOptics provides a large spectrum of Zenith Polymer® diffusers. Those diffusers are available in several different sizes, thicknesses (those define the percentage of transmission) and reflection characteristics. It is possible to attach high level gluing foil on a Zenith Polymer diffuser, which allows an easy processing.

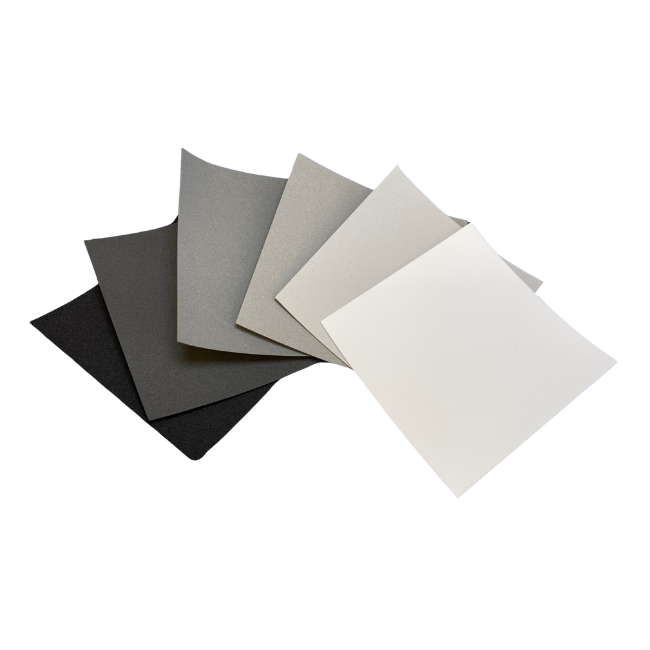

Zenith Polymer® Greyscale Diffuser
Lambertian reflectance sheets
To realise optical and process stability, often Zenith Polymer® greyscale diffuser sheets are used as an optical baseline reference. To enable the customer to adapt the optical standard to his or her needs, we offer the greyscale Zenith Polymer® as 1 mm thick sheets, optionally with the proper gluing agent applied, so engineers and quality control personnel can fit the standard to their needs.
Zenith Polymer® White Diffuser
Lambertian transmission sheets
Thin section Zenith Polymer® sheets are used as cosine diffusers minimise angular dependency of the light reaching a photodetector or to create more even illumination from a light source. With a constant, lambertian throughput over the entire wavelength range of 250 nm to 2450 nm, the Zenith Polymer® diffuser finds application in a variety of light scattering measurements and calibration setups.
Optical Polymer Greyscale Diffuser
Optical Polymer White Diffuser
| White Diffuser | Greyscale Diffuser |
Transmission | 50, 25, 16, 8 and 4 % | |
Reflectance | 80, 50, 30, 20, 10 and 5 % | |
Thickness | 2 mm, 1 mm, 500 μm, 200 μm, 100 μm | 1 mm |
Sizes | 1000×1000 mm, 500×500 mm, 200×200 mm, 300×1000 mm, 300×500 mm, 300×200 mm | 1000×1000 mm, 500×500 mm, 200×200 mm |
Effective spectral range | 250 – 2450 nm | 250 – 2450 nm |
Laser damage threshold | 8 J/cm² pulsed laser | 8 J/cm² pulsed laser |
Humidity in range | 10-90 % | 10-90 % |
Usable temperature range | – 5 °C to 250 °C | – 5 °C to 250 °C |
