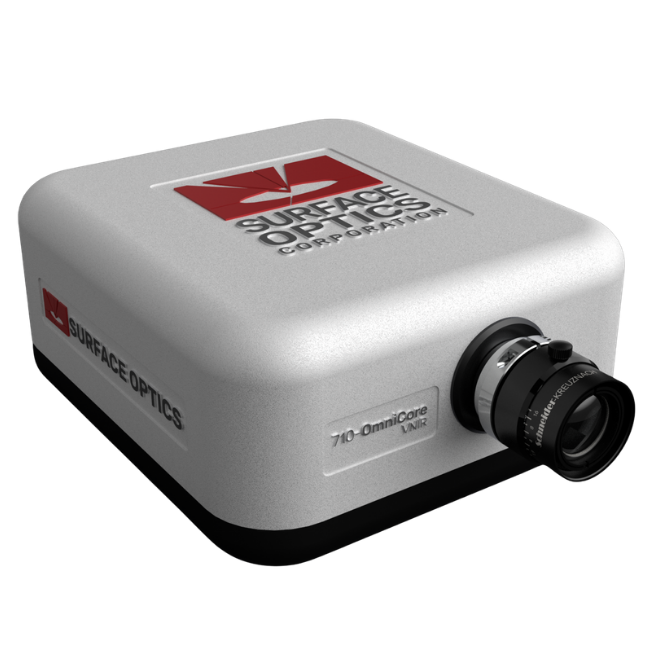

The 710-OmniCore hyperspectral imaging system stands out with its unique internal scanning design, making it the most versatile hyperspectral imaging system available.
Its flexible setup allows for seamless integration as a lab benchtop system or attachment to a tripod, boom, or tower for field measurements, eliminating the need for specialized scanning hardware.
The 710-OmniCore is the ideal hyperspectral imager for any lab’s current and future research needs.
Industry-Leading Spectral Resolution
Achieve a spectral resolution of 1.65 nm at native 1x binning, delivering the data density demanded by the most exacting R&D, academic, and advanced manufacturing applications.
Microscopy Integration
Easily attached to commercial microscopes via the c-mount for hyperspectral microscopy.
Purpose Built for High Performance
Co-engineered optics, sensor, and spectrograph work as one unified system – delivering the signal and resolution needed for 1x default spectral binning.
Spectral Range | 375 – 1025 |
Spectral Channels | 784 |
Spectral Resolution (FWHM) | 1.65 nm |
Spectral sampling / pixel | 0.83 nm |
Spatial Channels | 1500 |
RMS Spot Size | 6.95 μm |
Smile | < 0.5 pixels |
Keystone | < 0.1 pixels |
Slit Length | 9 mm |
Pixel Size | 5.86 μm |
Sensor Type / Materials | CMOS |
Image Sensor Format | 1/1.8” |
Max Frame Rate (fps) @ Full Frame @ 640 * 480 | 167 398.2 |
Integration Time | 0.019 ms – 120 s |
Bit Depth | 8-Bit or 12-bit |
Dynamic Range | 72 dB |
Noise Floor | 1.44 (counts) |
Light Transmission | ~ 90% 400 – 1000 nm |
Pixel Operability | > 99% |
Peak SNR @ 1x Binning 2x Binning | 157 222 |
Spectral Binning: Default / Options | 1 / 2, 4 |
Spatial Binning: default / Options | 1 / 2, 4 |
Pixel Well Depth / Full Well Capacity | 32000e |
Objective Lens Mount | C-Mount |
Shutter | Global |
Sensor Cooling | Passive |
Operating Temperature | 0 – 50°C |
Optics / Storage Temperature | -25°C – 70°C |
Connectors | USB 3.0 Micro-B |
Data Format | ENVI |
Weight | 2.04 kg |
Dimensions (LWH) | 7.02” x 6.14” x 3.23” |
Power Input / Consumption | 5V DC / 3.2 – 4.0 W |
Computer Requirements | Windows 10 or newer Intel/AMD 64-bit processor (minimum 6 cores) 32 GB RAM 512 GB SSD Minimum one USB 3.0 (SuperSpeed Port) |
