Nanomotion Piezoelectric Motion Stages

Nanomotion designs and manufactures advanced motion systems, sub-system modules, piezo motor and drive components. Based on proprietary ultrasonic standing wave piezoelectric technology, Nanomotion’s motors and motion solutions are suitable for a diverse range of applications including: medical, semiconductor, defence, metrology, space rated applications and a wide range of industrial applications. Motion systems from Nanomotion include linear and rotary stages, goniometer stages, vertical stages and custom motion systems.

FB series linear stages are available with slide widths from 50 up to 150mm

Nanomotion FB Stage

FR series rotary stages provide the most compact footprint for precision rotary motion

Nanomotion FR Stage

FZ series vertical stages provide pure vertical motion, while driving a wedge axis horizontally

Nanomotion FZ Stage

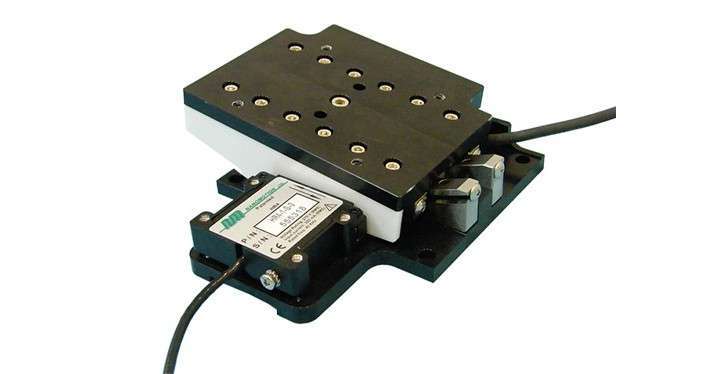

FG series goniometer stages provide precision angular tilt motion

Nanomotion FG Stage
