Kino Flo LED DMX Lighting Systems
The Kino Flo LED lighting systems are ideal for providing uniform, glare-free illumination for Imatest’s full range of reflective test charts, up to 111.7 x 198cm. Imatest offers three models as detailed below. Each comes as a set of two lights with stands and optional cases for storage. The Free Style 31 lights have an optional low-light filter.
Description
- Kelvin colour temperature presets.
- Dial-in colour temperature control between 2700K-6500K.
- Extended colour palette from 2500K-9900K.
- Green/magenta control.
- Hue angle and saturation adjustments.
- RGB control.
- Works with apps with predetermined RGB presets or colour wheels.
- Can use preset buttons to store custom Kelvin settings.
- Light levels do not change when selecting Kelvin settings.
- No colour shift whilst dimming.
- Colour-correct with high colour rendering index (CRI 95).
- Universal input 100VAC-240VAC or 24VDC
- Energy efficient – draws 1.25A, 120VAC and 6.25A, 24VDC (Free Style 31)
- Flicker-free, quiet operation.
- Full range onboard and DMX dimming.
- DMX wireless link (Lumen Radio®)
- DMX auto terminate.
- Remote fixture with built-in barndoors.
- Removable LED panel with centre mount and moulded corner mounts.
- Fixture includes removable 90° honeycomb louver.
- Honeycomb louver also available in 60° as accessory.
- Removable centre mount.
- Kino Grip centre mount.
- Free Style 31 & 41 have a lightweight, slim profile.
- All lights include sturdy stands.
- Controller mounts onto fixture or operates remotely with extension cable.
- Free Style 31 has optional soft case or hard case.
- Free Style 41 and Celeb 850 have an optional hard case that can be added to your order.
With the “white menu,” the light provides high quality illumination over a Kelvin range from 2700K tungsten to 6500K daylight, and is dimmable over a 150:1 range.
Additional menu options for studio photographers allow operation over a Kelvin range of 2500K tungsten to 9900K daylight, the simulation of blue & green screens, sodium vapor and mercury vapour lamps, over 100 well-known lighting gels and, and a wide range of RGB settings.
The lights come with standard DMX and wireless DMX (Lumen Radio®), 24VDC input, and universal voltage input 100-240VAC (1.25 Amps at 120VAC).
The Imatest Low Light Filter was designed specifically for the Kino Flo Freestyle 31 LED fixture. The filter increases dynamic range from 437:1 to 35,000:1 and allows testing at extremely low light settings.
| Model | Lux | Fixture Dimensions | Panel Dimensions | Optional Low-Light Filter |
|---|
| Kino Flo 31 LED DMX | 7270 at 0.5m | 103cm x 28cm x 9cm with 16.5cm barndoors (40.5″ x 11″ x 3.5″ with 6.5″ barndoors) | 94cm x 21.5cm (37″ x 8.5″) | Yes, the optional Low Light Filter increases dynamic range from 437:1 to 35,000:1 |
| Kino Flo 41 LED DMX | 6840 at 0.5m | 133.4cm x 22.9cm x 10.2cm with 15.3cm barndoors (52.5″ x 9″ x 4″ with 6″ barndoors) | 125.7cm x 19.1cm (49.5″ x 7.5″) | Not available |
| Celeb 850 LED DMX | 23040 at 0.5m | 114cm x 65 x 15 cm (45″ x 25.5″ x 6″) | 113cm x 57cm (44.5″ x 22.5″) | Not available |

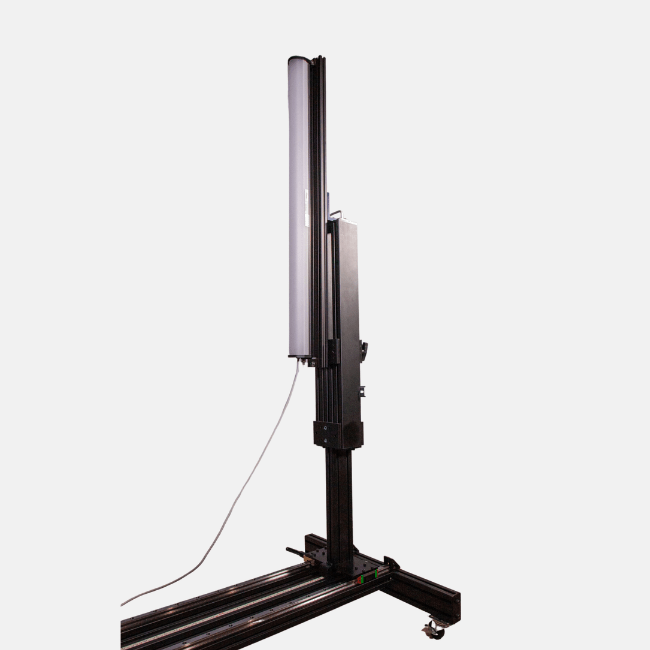

Metaphase NIR ExoLight v2.0 (Set of 2)
The Metaphase NIR ExoLight v2.0 lighting system is ideal for providing uniform, glare-free illumination for Imatest’s full range of reflective NIR test charts (850 or 940nm NIR), up to 111.7 x 198 cm. This set of two is designed to integrate with the Imatest MTS-Reflective Module.
Description
This set of two Metaphase 850nm or 940nm NIR ExoLight v2.0 lights and the ULC-2 Controller integrate with the Imatest Modular Test Stand Reflective Module to provide an NIR option.
- ExoLight v2.0 Weight: 2.6kg (5.8lb) (each).
- Metaphase ULC-2 controller weight: 0.68 kg (1.5lb).
- Light diffusion: Lumiform diffuser with 120° (±5%) uniform lighting.
- Operating temperature: -20C → 40C.
- Lifetime expectancy: 75,000 hours.
- Wavelength: 850 or 940nm NIR lights.
- Manufacturer: Metaphase.
- Contrast ratio (Min:Max): ~1:300.

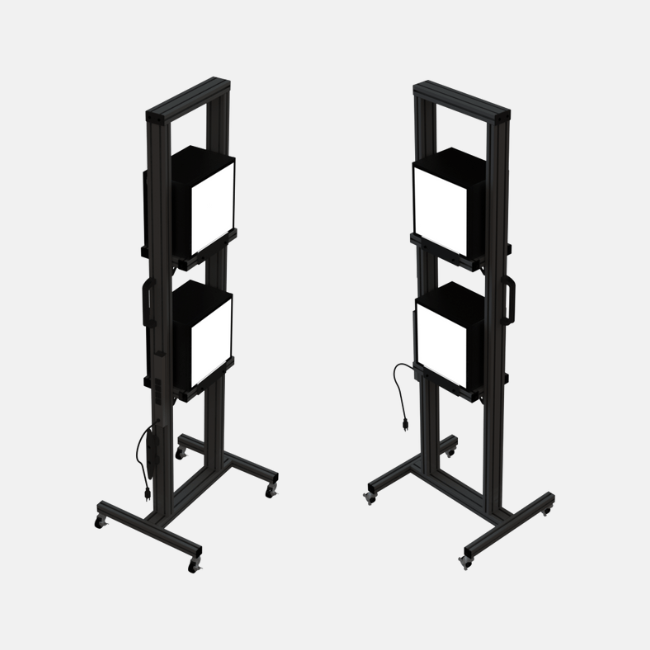

Thouslite LED Cube & Fixture
Datasheet
This package combines everything you need to integrate the Thouslite Tunable LED Cube lights and adjustable stands into your test lab:
- LED Cube spectrally tunable lights.
- Controller.
- Thouslite Navigator software.
- The Imatest LED Cube Ffxture (set of two) which can accommodate 1, 2 or 3 LED Cube lights per side.
- Your choice of the Jeti Spectrometer or the Konica Minolta CL-500A illuminance spectrophotometer.
The Thouslite LED Cube is a highly tunable, reflective light source. Reproduce any phase of daylight with the highest quality Colour Rendering Index (CRI: 99) and Metamerism Index (MI: Grade A). Simulate various lighting environments to evaluate the performance of your camera or sensors, including tests for auto white balance, colour rendering, auto exposure, etc.
Key Features
- Reproduce high quality daylight illuminant with Colour Rendering Index (CIE Ra) 99 and Metamerism Index (MI) Grade A.
- Blackbody locus simulator to accurately produce a range of sources from tungsten to daylight varying Correlated Colour Temperature (CCT) from 2000K to 20000K with tunable CIE Ra 0~100 and tunable Duv -0.02~+0.02. One device reproduces all light sources.
- SPD match to accurately reproduce any measured or imported SPD to record any light you want. It is easy to spread SPD files between different locations for light communication.
- High light intensity output and luminance adjustable using using high power SMD LEDs, together with the software, guarantees high light intensity output, and the light intensity is dimmable while keeping the same light quality.
- Fast change between illuminants and no warm up time with with same illuminant properties during illuminant switch; no warm up time & instantly stable.
- Single-channel control – arbitrarily control the intensity of each channel in LED Cube to design any light wanted.
- Dynamic lighting – programmable light sequence and interval.
- User-friendly software – LED Navigator allow users to design light according to different optimisation purposes. SDK available on request.
- Fast & accurate feedback – maintain the same light quality, compensating for age and variable environments with external micro-spectrometer; more consistent than conventional lighting.
- Flicker free based on AM driven method, it provides a flicker free lighting environment.
- Longer life time and excellent long term stability compared to fluorescent technology, and optimised heat management resulting in excellent long term stability.
- LED channel wavelength selection service from UV, VIS to NIR.
- Wireless control – up to 256 LED Cubes can be controlled separately or simultaneously via Zigbee wireless technology, easy to build customised lighting space and future upgrade. Individual LED Cube control allows users to set different CCT for different LED Cubes in the same network to simulate actual environment.
- Adjustable Stands – place up to 3 LED Cubes on each fixture using shelves with adjustable heights. Position the fixtures in any orientation with lockable casters.
Specifications
- LED Channels: 15.
- Spectral range: 350-700nm.
- LED channel drive method: amplitude modulation.
- Resolution: 10 bit (1024 steps dimmable for each channel).
- LED lifetime: >10,000 hours.
- Capacity: 80 light source in LED Cube hardware; unlimited in software.
- Predefined illuminants: standard daylight D65, D50 CIE Ra:99, Mlvis: Grade A (<0.25).
- Tunable range: CCT: 2000 ~ 2000K, CIE Ra: 0~100, Duv: -0.02~+0.02.
- Max illuminance: 1 light source D65: 1 meter 850lux; D50: 1 meter 1250lux (multiple light source can achieve higher lux levels).
- Short-term stability: D65<+/-10K, D50<+/-5K; Luminance <+/-0.5%.
- Long-term stability: D65<+/-25K, D50<+/-15K; Luminance <+/-1.5%.
- Software instrument compatibility: Konica Minolta CL500A, Konica Minolta CS2000, Thouslite FS Spectrometer, Jeti Specbos 1211UV spectroradiometer.
- Electrical: 110/230V, 50/60Hz, 180W maximum.
- Connection: USB cable, wireless control, touch screen controller.
- Dimensions (L/W/H) & weight: 300 x 300 x 210mm (270 × 270 emitting size), 7kg.
- Includes: LED Cube light source, power cord, USB cable, wireless sender.
- Software (optional): modules in LED Navigator: blackbody locus simulator, SPD match, feedback, dynamic lighting, single channel control, single LED control; SDK available on request.

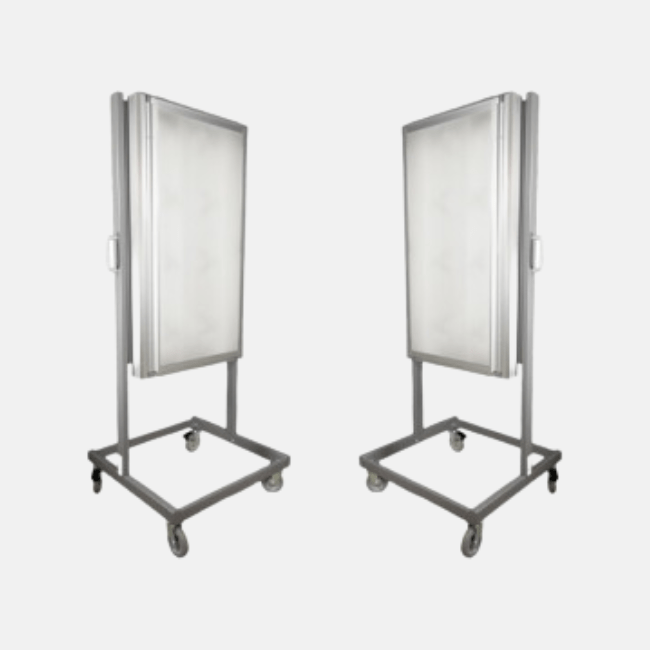

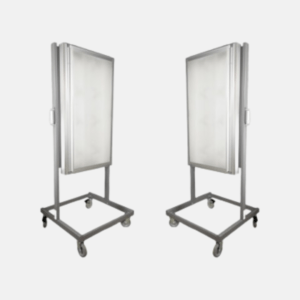

Reflective Chart Lighting System
The SpectriWave™ lighting systems are designed to produce high quality, flexible test lab environments for imaging systems. This Reflective Lighting System is a fully customisable lighting solution that can illuminate an area up to 100cm x 150cm (40″ x 60″) with reasonably good uniformity (>80%) and smaller reflective charts (areas) with high uniformity (>90%).
Features and options offer a flexible lighting solution to create almost any conceivable lighting condition. With wireless control, the lighting system can be easily controlled via the provided PC tablet, a computer, or integrated into custom software test suites via a python API.
The lighting system offers flexibility when illuminating reflective test targets because it utilises multisource luminaires and heavy duty Munsell N5 coated light stands that can be positioned with ease. These lights can be configured to work anywhere in the world.
Specifications
- Size: 86.36cm (depth) x 76.2cm (width) x 205.74cm (height); 34″ (depth) x 30″ (width) x 81″ (height).
- Electrical: 100-240V, 1,000W max (depending on configuration).
Standard Configuration:
- Five light sources (D65, D50, CWF/TL-84, Inc. “A” and Horizon).
- All sources dimmable via rotary dial or digitally.
- Individual lamp control.
- Multisource option for creating mixed lighting conditions.
- Wired/Wireless remote control via PC tablet .
Customisation Options:
The lighting system can be fully customised to fit you specific application with your choice of many different options including:
- 2, 3, 4, or 8 light sources
- Daylight: D75/D65/D50
- Cool White Fluorescent (CWF)
- TL-84/83
- SPX35
- Inc. “A”/Horizon
- 10,000K
